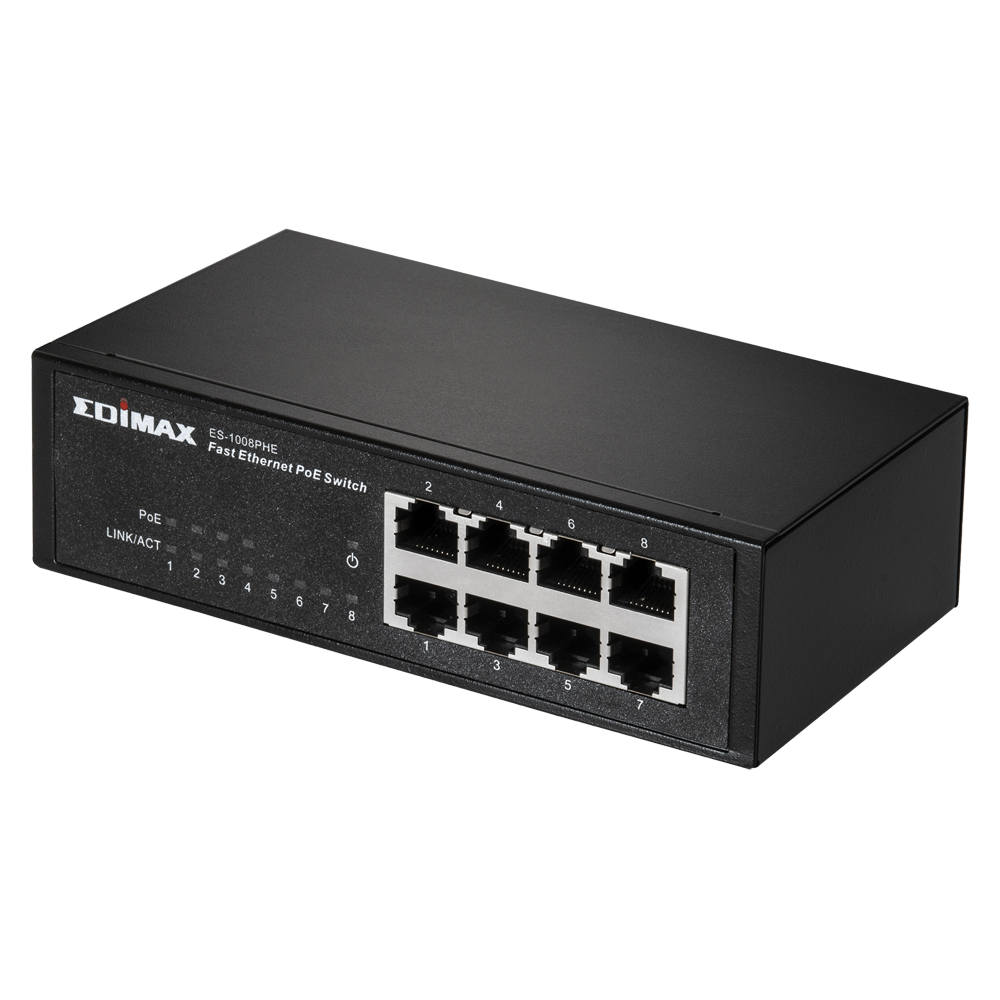

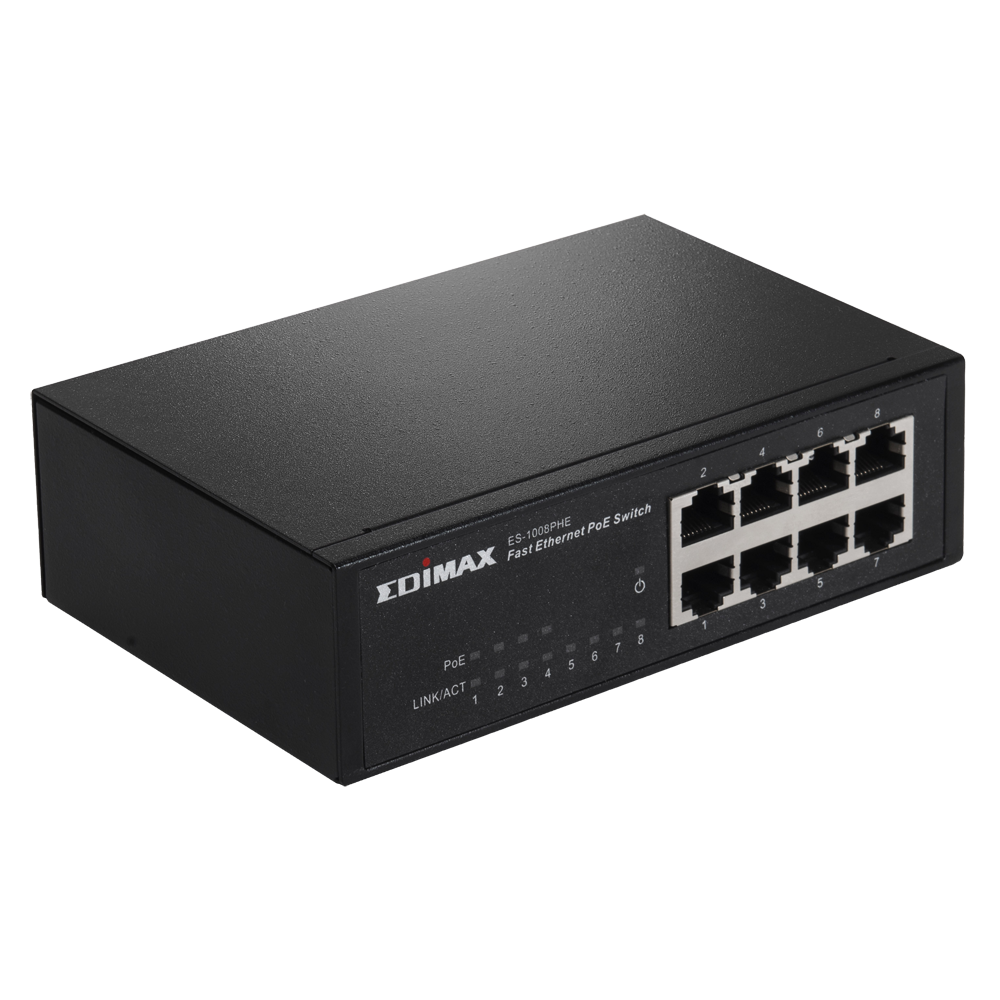

8 портовый Fast Ethernet коммутатор c 4 PoE портами
ES-1008PHE
  • Соответствует стандартам IEEE 802.3, 802.3u, 802.3x, 802.3af
  • PoE питание 48 В DC, 15.4 Вт на порт (1-4 порты)
  • Автоматически определяет подключенные питаемые устройства (PD) и уровень энергопотребления
  • Поддерживает автоопределение сбоев (повышение/понижение тока и напряжения)
  • Поддерживает энергоэффективный Ethernet стандарт IEEE 802.3az





The ES-1008PHE is an 8-port Fast Ethernet switch with 4 PoE (Power over Ethernet) ports, designed for use in home, small or medium sized network environments. It is easily to connect and supplies power to any PoE-enabled devices such as wireless access points, network cameras, IP phones  as well as the other Ethernet-enabled devices , for example, computers, printers, and network attached storages (NAS) onto the some network. The device's compact size and fan-less design makes the ES-1008PHE ideal for home and small business easily to expand the network.

Power over Ethernet (PoE) Auto Detection
The ES-1008PHE features 4 IEEE 802.3af Power over Ethernet (PoE) ports, port 1 to port 4, which supply up to 15.4 watts of power per port to IEEE 802.3af compliant network devices, including wireless access points, network cameras and IP phones. The ES-1008PHE also features PoE detection, to verify whether the connected device is IEEE 802.3at compliant and supply power as needed; if it is not a PoE device, only data will be sent through the LAN cable.

Plug & Play, No Installation And Special Cable Required
The ES-1008PHE is with no configuration required.  Just easily plug the Ethernet or PoE enabled devices into port 1 to port 4 of the ES-1008PHE switch, the data and power can be transmitted through the existing standard Cat-5 Ethernet cables with no additional cost for special cables.

Flexible Network Deployment And Cost Saving
The ES-1008PHE  PoE switch is the best solution for when power outlets are difficult to install or the power outlets are too far from the device. The ES-1008PHE also supports IEEE 802.3az Energy Efficient Ethernet, allows for less power consumption during periods of low data activity.

Fan-Less Quiet And Compact Design
The ES-1008PHE is with fan-less design ensures quiet operation and compact size without tacking too many desk space for home or small office environments.



ФИЗИЧЕСКИЕ ИНТЕРФЕЙСЫ



Стандарты



Свойства

Скорость фильтрации

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3af PoE
  • IEEE 802.3x контроль потока
  • IEEE 802.3az энергоэффективность
  • RJ-45 порты: 8
  • PoE порты: 4
  • MAC адресация: 1K
  • Буферная память: 56K
  • Метод передачи: Store and Forward
  • 100 Мбит/с порт - 148,800pps
  • 10 Мбит/с порт - 14,880pps

Кабели

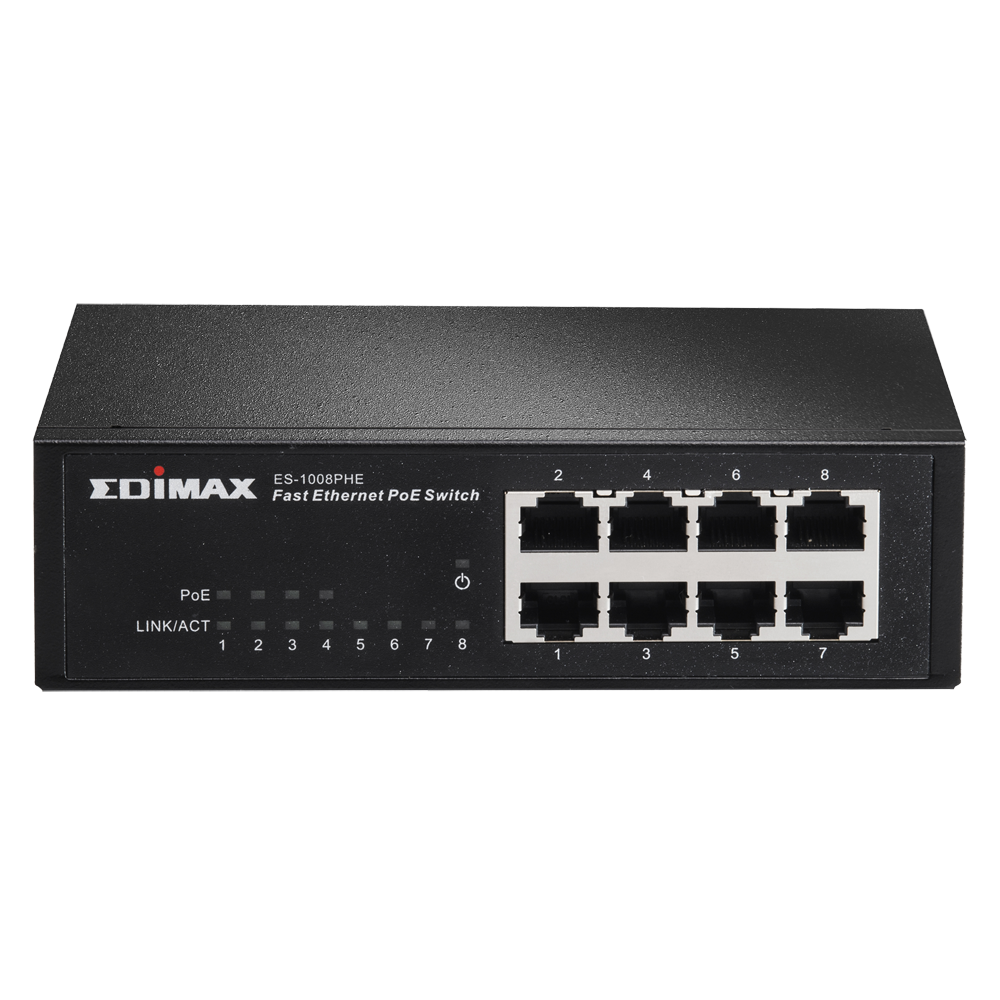

LED индикация

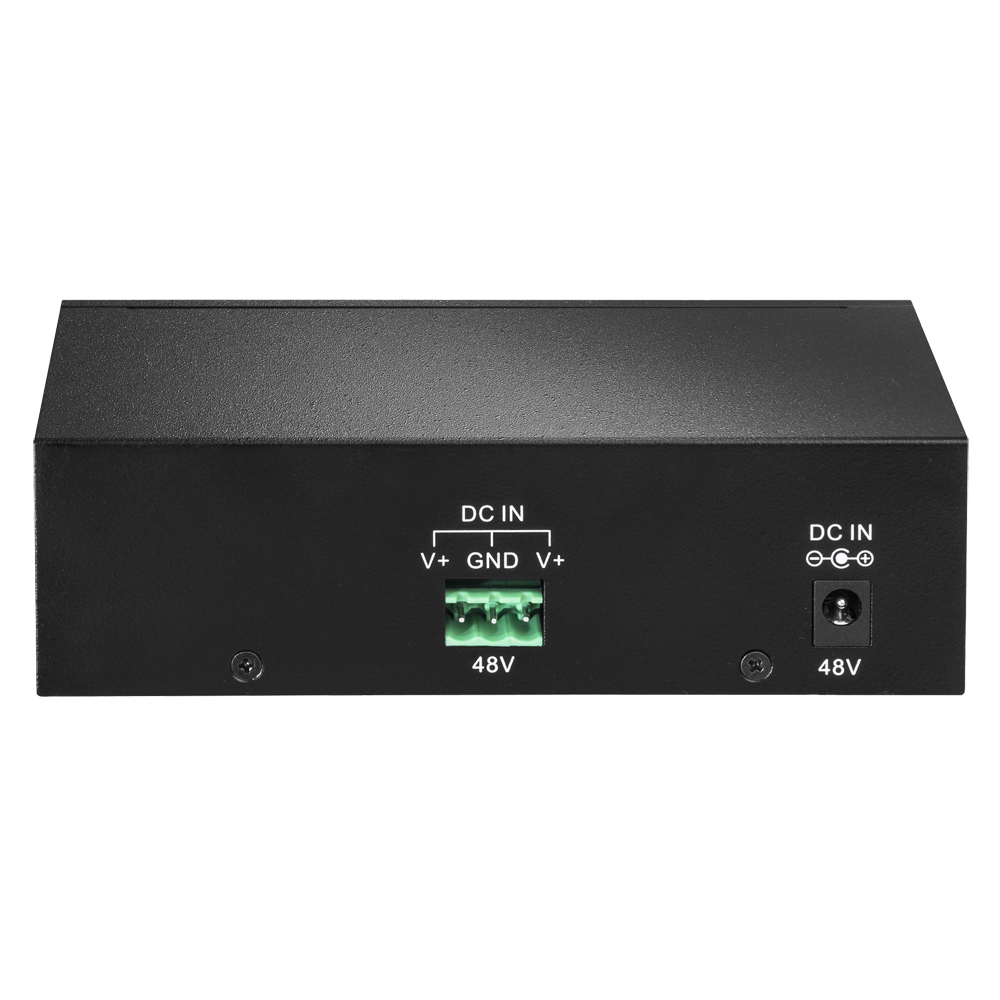

Питание

  • 10BASE-T Cat. 3, 4, 5 UTP/STP
  • 100BASE-TX Cat. 5 UTP/STP
  • Питание: зеленый LED
  • LNK/ACT: зеленый LED (порты 1 -  8)
  • PoE: зеленый LED (порты 1 -  4)
  • 100 - 240 В AC, 50/60 Гц

PoE мощность

Размеры

Вес
  • 48 Вт
  • Полная нагрузка PoE: 43 Вт
  • 146 x 84 x 42 мм (Д x Ш x В)
  • 0.37 кг

Температура

Влажность

Сертификаты

  • Рабочая: 0 - 40℃
  • Хранение: -40 - 70℃
  • Рабочая:10 - 90%  (без конденсата)
  • FCC Class B, CE, EAC
*Максимальна продуктивність, реальна швидкість та покриття мережі залежать від зовнішніх факторів оточуючого середовища.
*Технічні характеристики та дизайн можуть бути змінені без попереднього повідомлення.
